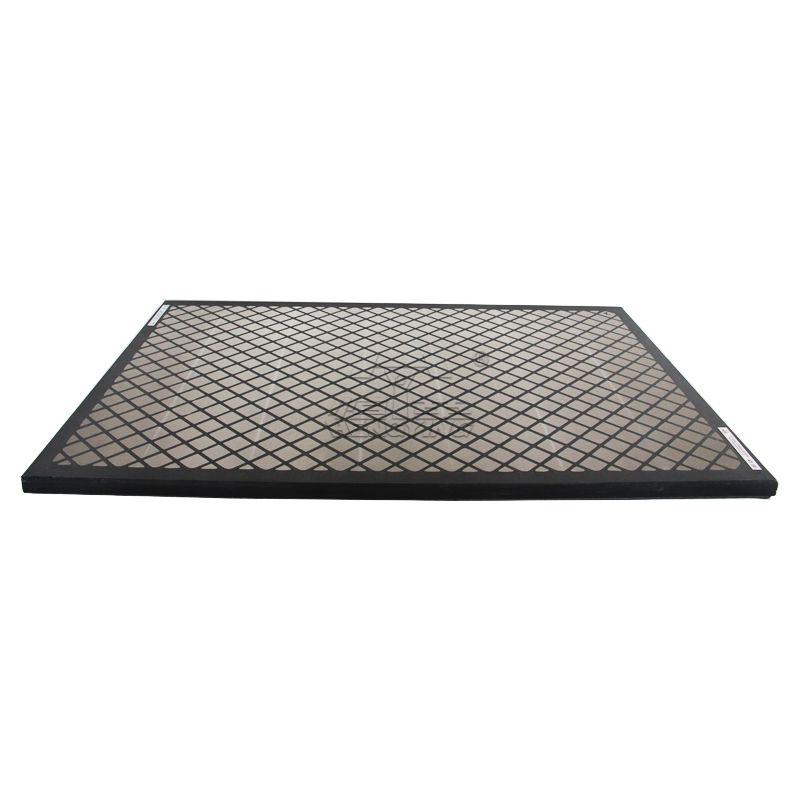

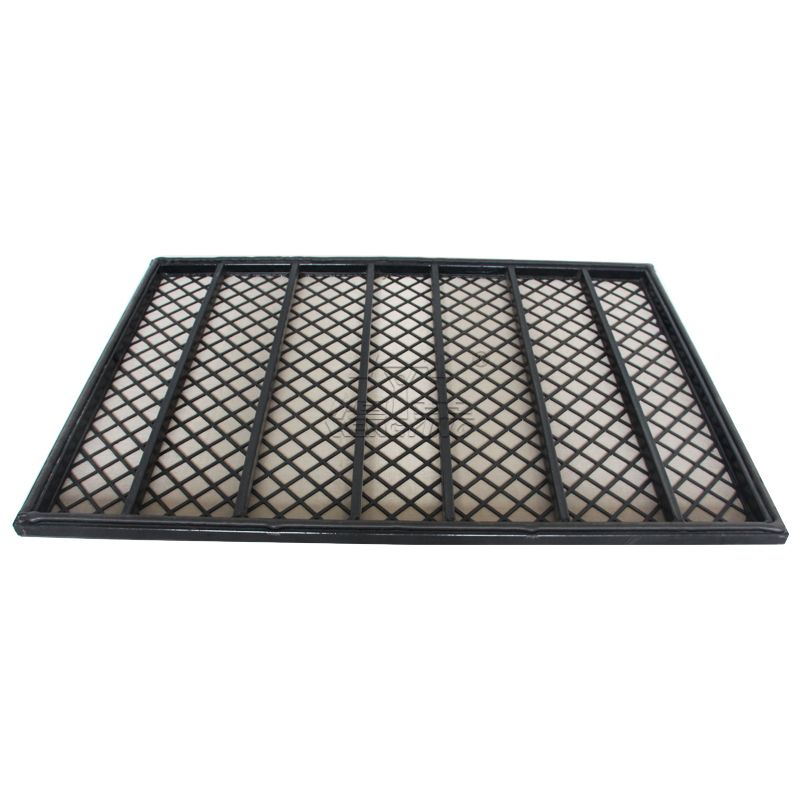

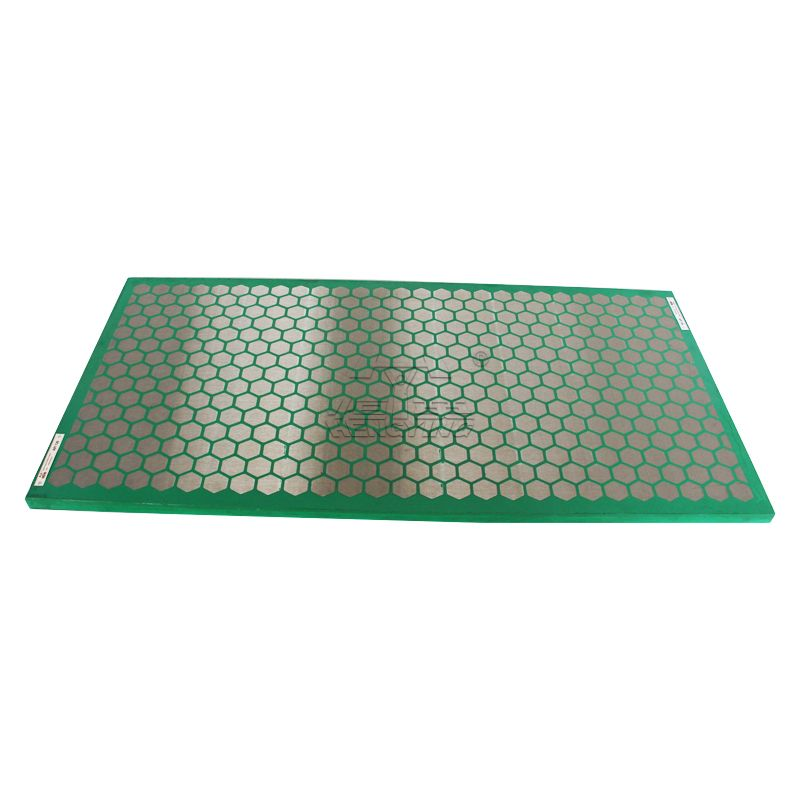

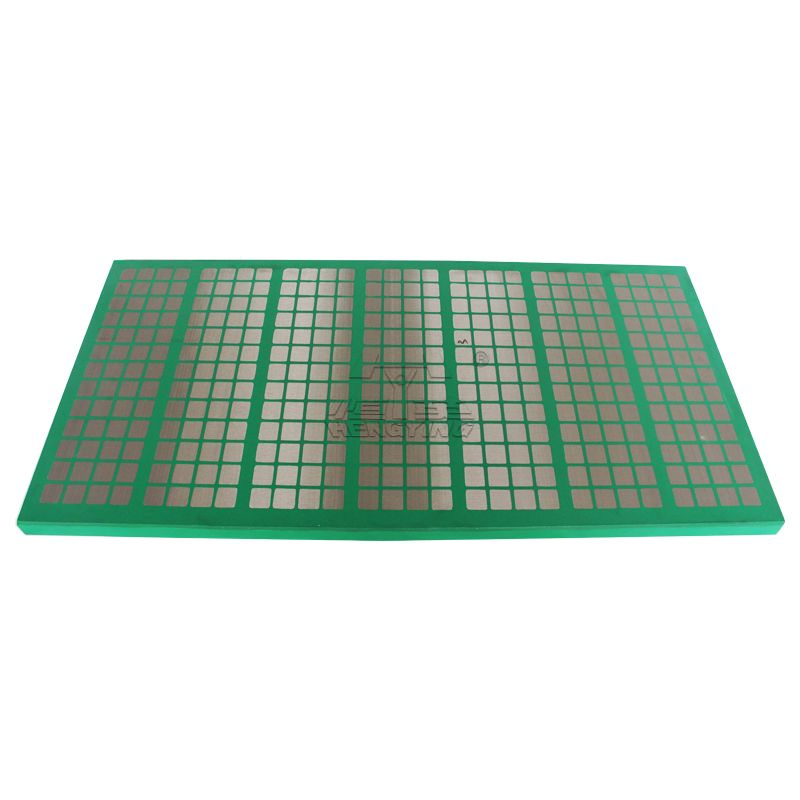

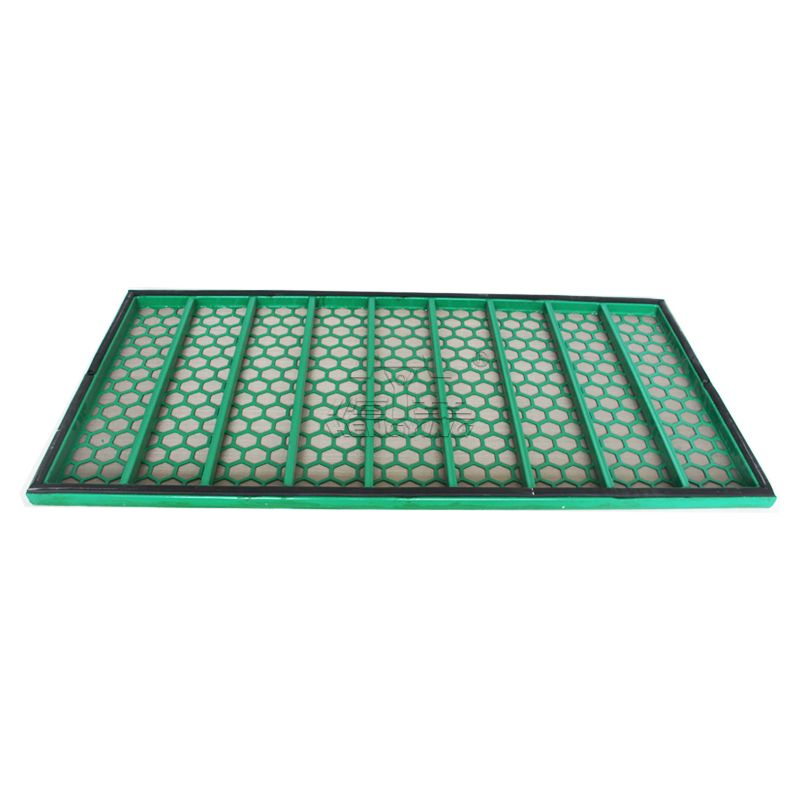

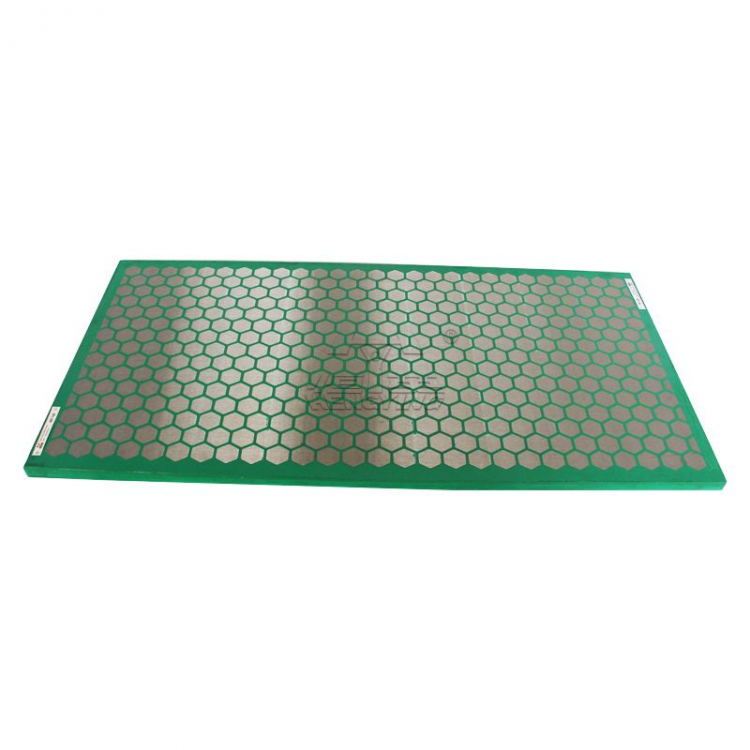

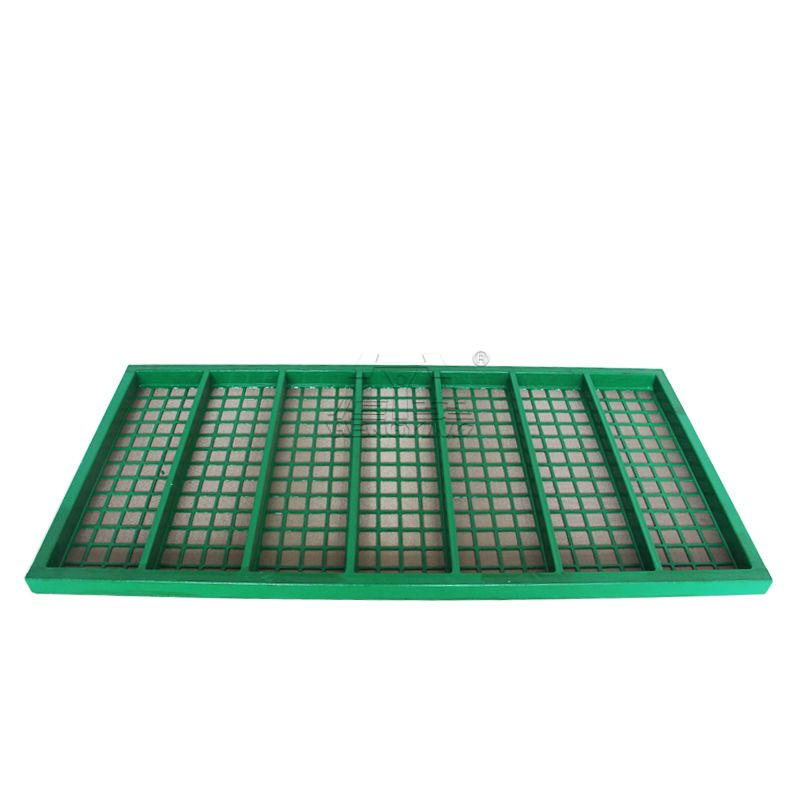

Steel Frame Screen

The stainless steel wire cloth combined directly bonded on the steel plank.then tightly bonded together by steel frames and metal plank.

Inquire Now

PRODUCT FEATURES

Steel Frame Screen：

Steel Frame Screen is the most widely used screen,the features of screen of this type:

1.The stainless steel wire cloth combined directly bonded on the steel plank.then tightly bonded together by steel frames and metal plank.

2.Every layer of wire cloth has different meshes,accurately and reasonably making screening more micro mesh.

3.It forms a reliable whole,with high-strength steel frame,reinforced supports and moderate tension screening cloth,which greatly enhances the tolerate flow,strength and working life .Rapid wedge tensioning devices make screen installation more convenient, and save the time of machine halt for changing .

4.Wire cloth is divided into several independent small cloths to prevent excessive expansion of local damage.At the same time,with a special rubber plug to repair damage,it can save time and reduce use-cost.

Note:Screens in this list all are manufactured by our company.Screen size is generally provided by customers.Specific dimensions and details may be adjusted according to the order.

Screen Model	Range of Mesh	Dimension (width x Length)	Brand & Model of Shaker
HSK-1	20-325	585×1165mm	MON PT＆PRO
HSK-2	20-325	635×1250mm	COBRA＆KING COBRA
HSK-3	20-325	913×650mm	VSM300
HSK-4	20-325	720×1220mm	KTL48 SERIES
HSK-5	20-325	712×1180mm	D380
HSK-6	20-325	737*1067mm	FSI 50＆500＆5000

API RP 13C(ISO 13501)
D100 Separation(Microns)	API Screen Number
>780.0 to 925.0	API 20
>655.0 to 780.0	API 25
>550.0 to 655.0	API 30
>462.5 to 550.0	API 35
>390.0 to 462.5	API 40
>327.5 to 390.0	API 45
>275.0 to 327.5	API 50
>231.0 to 275.0	API 60
>196.0 to 231.0	API 70
>165.0 to 196.0	API 80
>137.5 to 165.0	API 100
>116.5 to 137.5	API 120
> 98.0 to 116.5	API 140
> 82.5 to 98.0	API 170
> 69.0 to 82.5	API 200
> 58.0 to 69.0	API 230
> 49.0 to 58.0	API 270
> 41.5 to 49.0	API 325
