Sand Control Filter

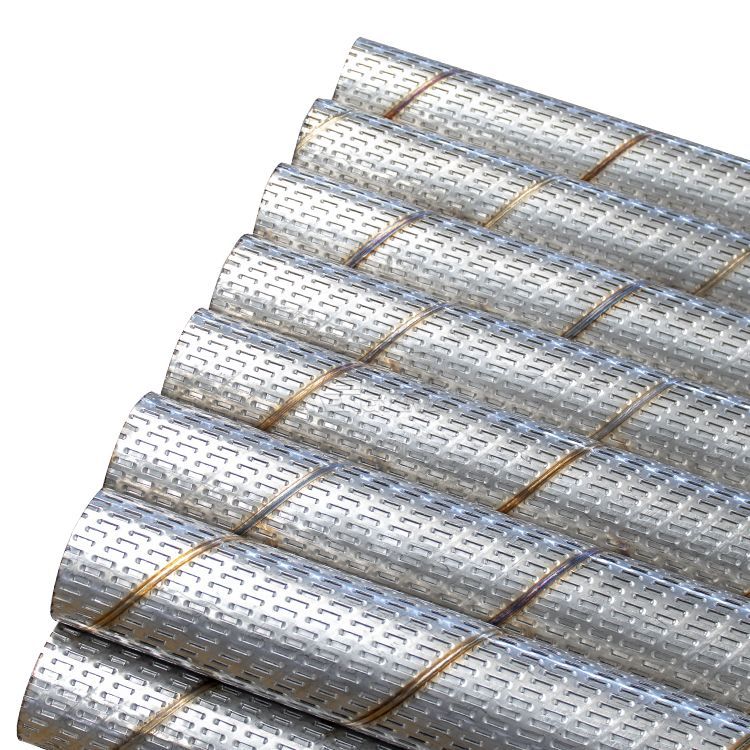

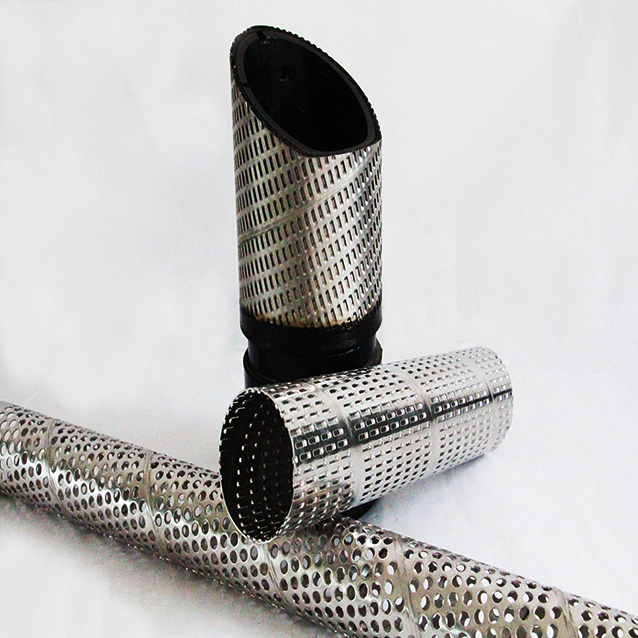

Hengying Wire Cloth Co.,Ltd. has developed together with the relevant scientific research organizations series filter products for petroleum chemical filtration: Oil sand control screen (anti-sand filter blocks), spiral welded stainless steel filter tube (spiral welded pipe), straight seam welded stainless steel filter tubes, well received by the oil field customers.

Inquire Now

PRODUCT FEATURES

sand control filter can be used for vertical wells, the inclined shaft, horizontal wells and various gas, oil and water wells. Can be used individually as sand control tube, also can be used together with filling.

From the inside to the outside, the screen is made with the composite sand filtration kits, stainless steel protection kits and other components. The basic tube is API casing or tubing, sand control filters are stainless steel precision porous filter composite materials, made of the whole welded structure. Because of high penetration, high-intensity, high resistance to deformation, high reliability, good corrosion resistance, the new type of sand control screen has excellent performance property. It is the result of a highly effective new technology in mechanical sand control. This is also our patented product.

Tube Outer Diameter		Tube Weightkg/m	Screen Inner Diametermm	Screen OuterDiametermm	Screen Weightkg/m	Lengthm
In	mm	Tube Weightkg/m	Screen Inner Diametermm	Screen OuterDiametermm	Screen Weightkg/m	Lengthm
2 3/8	60.3	4.6	50.6	76	11.6	1.6-12.5
2 7/8	73	6.4	62	89	14.7	1.6-12.5
3 1/2	88.9	9.2	76	108	19.5	1.6-12.5
4	101.6	9.5	90.1	124	21.5	1.6-12.5
4 1/2	114.3	11.6	101.6	136	24.3	1.6-12.5
5	127	15	112	150	29	1.6-12.5
5 1/2	139.7	17	124.3	162	33.9	1.6-12.5
6 5/8	168.3	24	150.4	192	43.5	1.6-12.5
7	177.8	26	159.4	202	48.5	1.6-12.5
