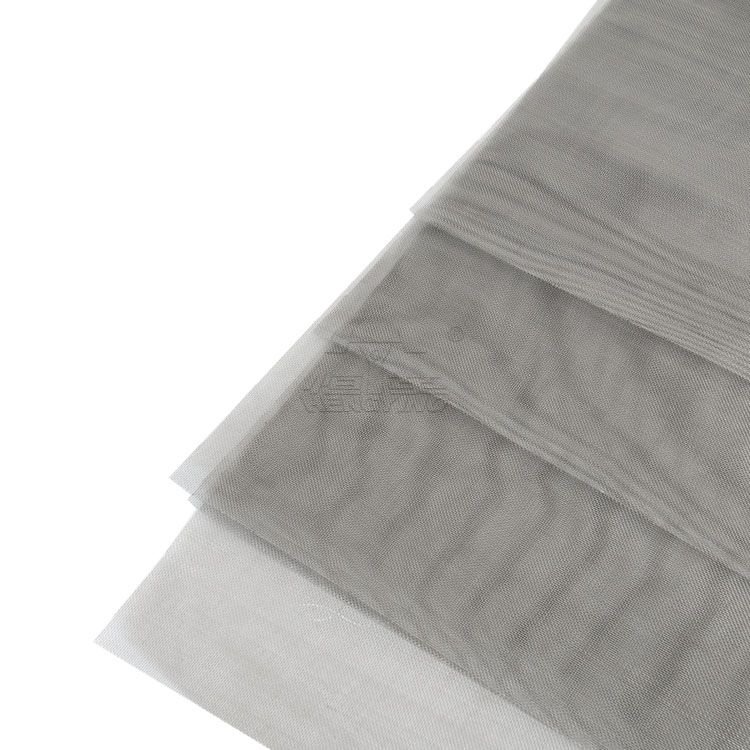

square wire mesh

We produce square wire mesh mesh from first class stainless steel wire material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.ss steel wire mesh from first class stainless steel wire material in SUS/AISI 201 202 302 304 310 310S 316 316L 321 430 etc.

Inquire Now Next

PRODUCT FEATURES

square wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

Product infomation:

1)product range : usually,manufactured in 30m ( up to 200) long and in width of 36 48 1m 1.2m 1.5m 2.0m etc. or cut to length panels as per client's requirement.

2) Packing: water-proof paper ,woven bag and also can be made as per client requirement

3) weave:This type of mesh is available in Plain Weave, Twill Weave ; Plain Dutch Weave, Dutch Twill Weave.

4) mesh counts: 1 mesh to 635 mesh.

5) sample: available.

Stainless steel wire mesh
Mesh	Dia mm	Hole mm
2MESH	1.8	10.90
3MESH	1.6	6.866
4MESH	1.2	5.15
5MESH	0.91	4.17
6MESH	0.80	3.433
8MESH	0.60	2.575
10MESH	0.55	1.990
12MESH	0.50	1.616
14MESH	0.45	1.362
16MESH	0.40	1.188
18MESH	0.35	1.061
20MESH	0.30	0.970
26MESH	0.28	0.696
30MESH	0.25	0.597
40MESH	0.21	0.425
50MESH	0.19	0.318
60MESH	0.15	0.273
70MESH	0.14	0.223
80MESH	0.12	0.198
90MESH	0.11	0.172
100MESH	0.10	0.154
120MESH	0.08	0.132
140MESH	0.07	0.111
150MESH	0.06	0.109
160MESH	0.06	0.099
180MESH	0.053	0.088
200MESH	0.053	0.074
250MESH	0.04	0.062
300MESH	0.035	0.050
325MESH	0.03	0.048
350MESH	0.03	0.043
400MESH	0.025	0.0385
500MESH	0.025	0.0258
635MESH	0.020	0.020
Width 0.4m-8m
