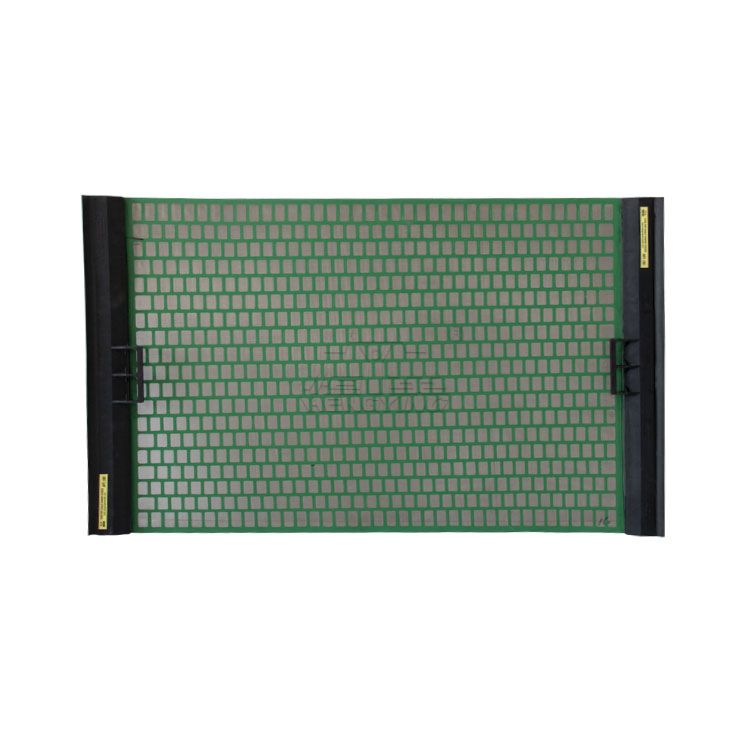

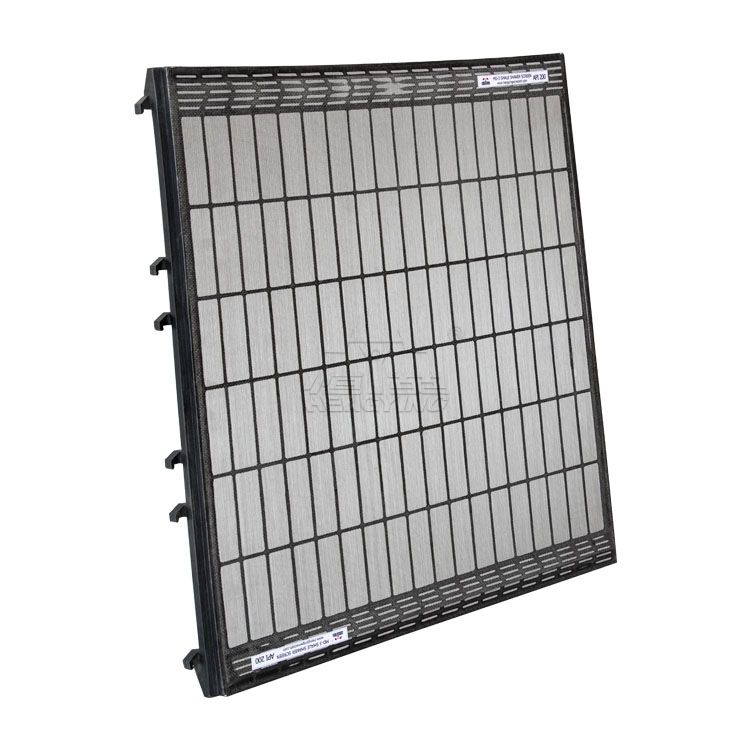

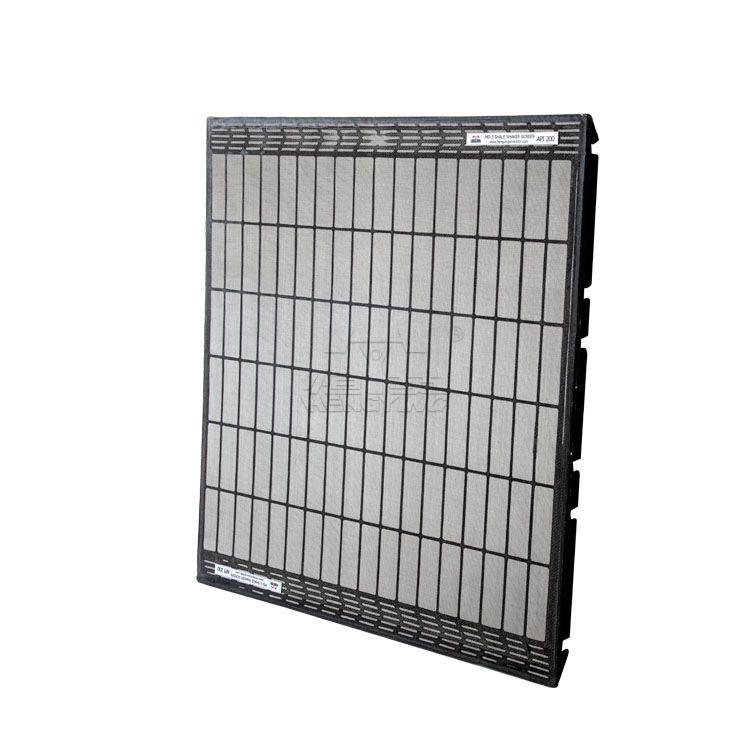

Composite frame screen is mainly composed of composite fame and 3 layers of stainless steel wire mesh .
PRODUCT FEATURES
Another name: The petroleum well drilling liquid shakes the screen mesh, the mud network
Material: Stainless steel wire, plastics flat network
Characteristic: Wear-resisting, it is rotten to be able to bear, it is warm to be able to bear etc.
Specification: The board is thick: Festival that 0.3-8mm is short square: 3-80mm, long festival square: 3-200mm, the largest width: 2.0mm
Use: The petroleum industry shakes and sifts using
Mainly is exported to foreign countries and sells every large oil field of the whole country to. The products which our factory produced with " superior quality, the cheap price ", are approved by the masses of customers, the products is sold to more than 30 provinces, municipalities and autonomous regions in the whole country and exports to a dozen countries and regions such as U.S.A., Japan, Germany, South Korea,etc.
| API RP 13C(ISO 13501) | |
| D100 Separation(Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
| Screen Model | Range of Mesh | Dimension (Width x Length) | Brand & Model of Shaker |
| HSZ-1/1 | 20-325 | 585×1165mm | SWACO MONGOOSE PT＆PRO |

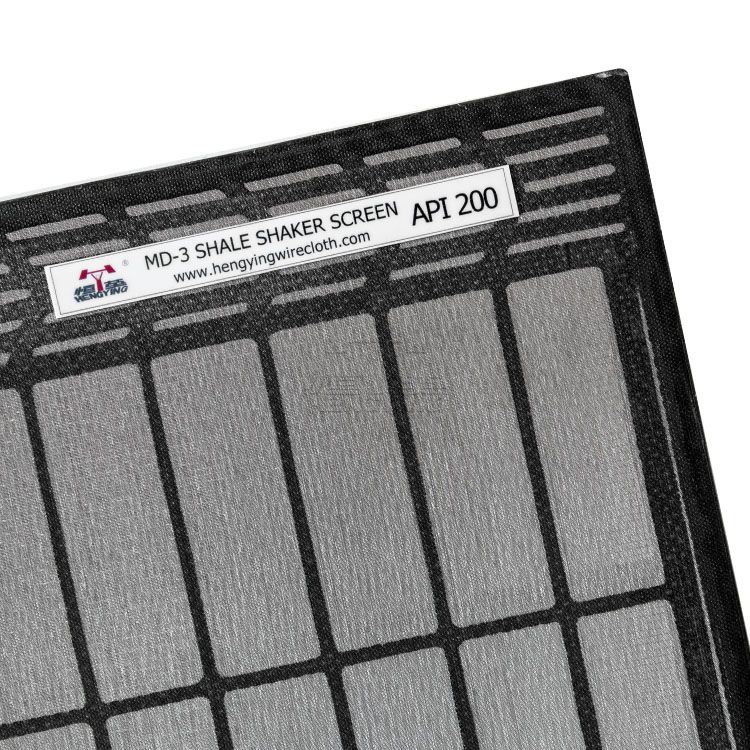

| HSZ-3 | 20-325 | 610×660mm | SWACO MD-2＆MD-3 |
| HSP-4 | 20-325 | 903×1155mm | SWACO BEM-3 |
| HSF-1 | 20-250 | 700×1050mm | SWACO DERRICK-FLC2000 |
| HSF-2 | 20-250 | 1212×1141mm | SWACO ALS-2 |
| HSB-1(WAVE ®) | 20-325 | 697×1053mm | DERRICK-FLC2000(PMD) Series |
| HSB-2((WAVE ®) | 20-325 | 695×1050mm | DERRICK-FLC500(PMD) Series |
| HSB-3(WAVE ®) | 20-325 | 710×626mm | DERRICK-FLC600 (PMD) Series |
| HSB-4(WAVE ®) | 20-325 | 567×1070mm | DERRICK HYPERPOOL |
| HSP-1 | 20-325 | 697×1053mm | DERRICK-FLC2000(PWP) Series |
| HSP-2 | 20-325 | 695×1050mm | DERRICK-FLC500(PWP) Series |
| HSP-3 | 20-325 | 697× 846 mm | DERRICK-FLC313M |
| HSZ-2/1 | 20-325 | 635×1250mm | BRANDT KING COBRA＆COBRA |
| HSK-2 | 20-325 | 635×1253mm | BRANDT KING COBRA |
| HSK-3 | 20-325 | 940*686mm | BRANDT VSM300 Pramary |
| HSK-4 | 20-325 | 889*686mm | BRANDT VSM300 scalping |
| HSK-5 | 20-325 | 712×1180mm | BRANDT D380 |
| HSK-4 | 20-325 | 720×1220mm | KTL48 SERIES |
| HSK-6 | 20-325 | 737*1067mm | FSI 50＆500＆5000 |
| HSP-6 | 20-325 | 915×1150mm | LCM-2D |
| HSP-7 | 20-325 | 700×1165mm | S250 |
