Wire Wrapped Screen

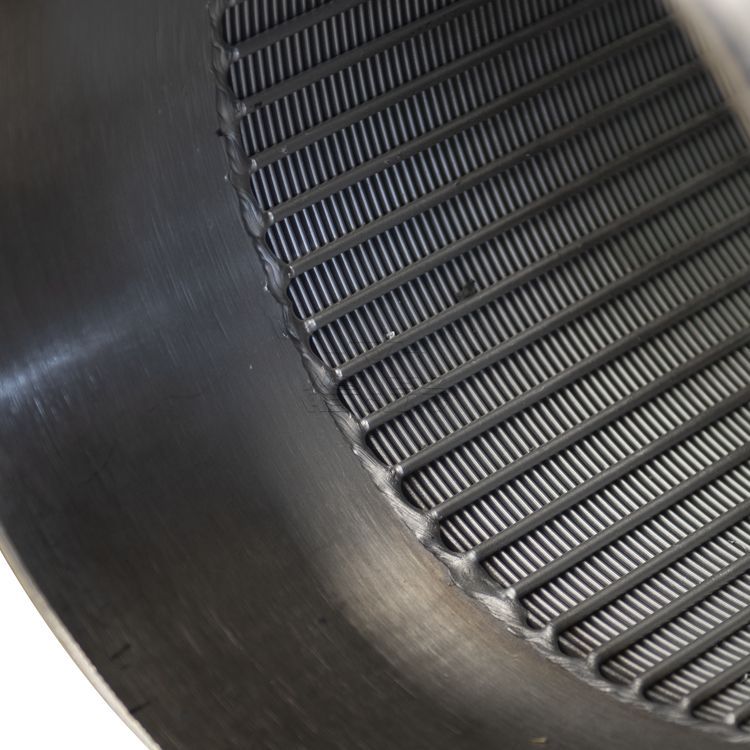

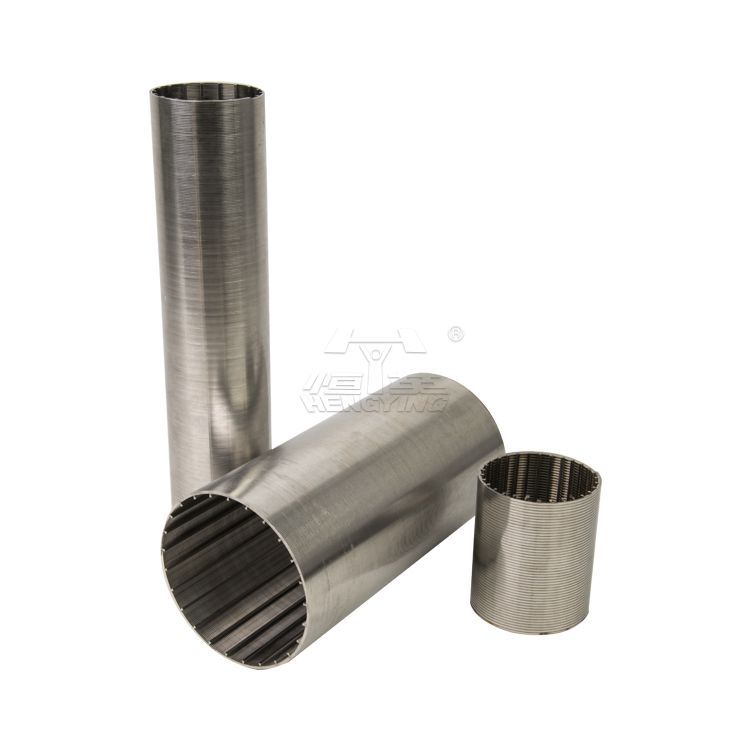

Wire wrapped screen also known as wire wrapped pipe or water well screen, it is manufactured by a v or wedge shaped wire around an internal array of longitudinal support rods.Each intersecting point of these wire is fusion welded.The v or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.

Inquire Now

PRODUCT FEATURES

The wire wrapped screen from Hengying provides a reliable and effective method of preventing gravel-pack sand from entering the pipe, while allowing production fluids to flow into the well.The product acts as a sand-retaining device placed in the well. Compared to normal slotted tube, inflow area of the same opening sand screen mesh size is 30 times larger, which prolongs the well life.

Features of wire wrapped screen:

1. Accurate slotting openings.

2. Shortest product delivery time.

3. Rotation capacity when installed.

4. The most cost-effective screen replacement.

5. Larger inflow area than slotted liners for maximum throughput.

6. High strength and superior corrosion resistance with stainless steel material.

Click here to customize wire wrapped screen according to your requirements!

Applications of wire wrapped screen:

1. Ideal for gravel packs and stand-alone operations.

2. Sandless production for vertical or horizontal wells.

3. Casing and open eye environment.

Specifications:

1. Slot size(mm): 0.1~3mm

2. Open area: up to 60%

3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with anticorrosion coating, stainless steel (304, 316L etc)

4. Unit Length up to 6 meters

5. Diameter: ranging from 25 to 800mm

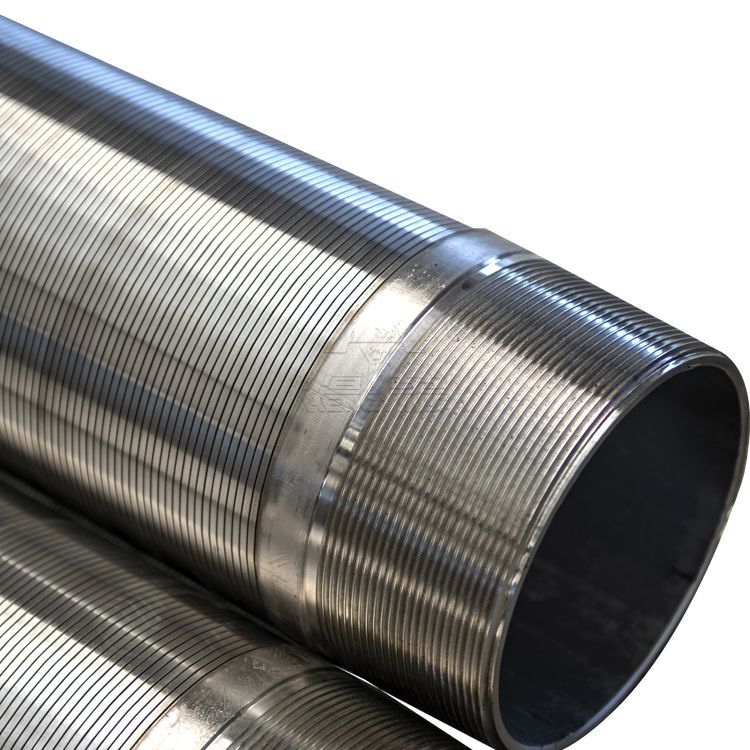

6. End connection: plain beveled ends for butt welding or threaded coupling or flange.

Screen Size		Inner Diameter		Outer Diameter		OD of Female Threaded End
in	mm	in	mm	in	mm	in	mm
2	51	2	51	25/8	67	23/4	70
3	76	3	76	35/8	92	33/4	95
4	102	4	102	45/8	117	43/4	121
5	127	5	127	55/8	143	53/4	146
6	152	6	152	65/8	168	7	178
8	203	8	203	85/8	219	91/4	235
10	254	10	254	103/4	273	113/8	289
12	305	12	305	123/4	324	133/8	340
14	356	13 1/8	333	14	356	----	----
16	406	15	381	16	406	----	----
20	508	18 3/4	476	20	508	----	----

Profile Wire
Width (mm)	1.5	1.5	2.3	2.3	1.8	3.0	3.7	3.3
Height(mm)	2.2	2.5	2.7	3.6	4.3	4.7	5.6	6.3

Support Wire

Round Wire ●

Width

(mm)

2.3

3.0

3.7

3.3

Ø2.5mm－Ø5mm

Height

(mm)

2.7

3.6

4.7

5.6

6.3
