We, HENGYING WIRE CLOTH CO., LTD, are the biggest professional manufacturer of shale shaker screens in China.
We have passed API RP 13C Testing and API Q1
PRODUCT FEATURES
These products screen panels are constructed with two or three 304 or 316 stainless steel wire cloth layers, after compounded and bended, with a steel backing plate combined together. The wire cloth and bottom steel backing plate combined tightly, increase the filtering area 120% to 150% more than hookstrip flat screen, get an better effective. area
1)Different layers with different density. To arrange these layers reasonably and exactly, the screening effect will become more and better. Screen with different mesh counts with suitable opening sizes of the backing plate. Doing so, our products will obtain the largest effective area under the condition of enough strength.
2)The bottom layer with low mesh counts has coarse wire and can be tight bonded to the backing to make up one block. So the strength of whole screen mesh get up and the useful life is increased
3) The mesh, divided into many independent small units by grids of the backing plate, can prevent rigs of tears from spreading overmuch. Accessory prepared rubber stoppers can be used to repair damages. By doing so, the operator can cut down the stop time and reduce the cost.
We have professional and high-technological Production Line.
1.Stainless steel Wire Mesh Weaving warehouse
which supply shale shaker screen production and also provide customers wire mesh needs.
2.Different shale shaker screen warehouse
which including every process of shale shaker screen production
3.Packaging warehouse
professional packing technology can protect screens very well during delivery
4.Delivery warehouse
Every day large amounts of screens will be sent from here.
We are professional, we have high-technologies, we have good after-sale services, so you definitely deserve to choose us!

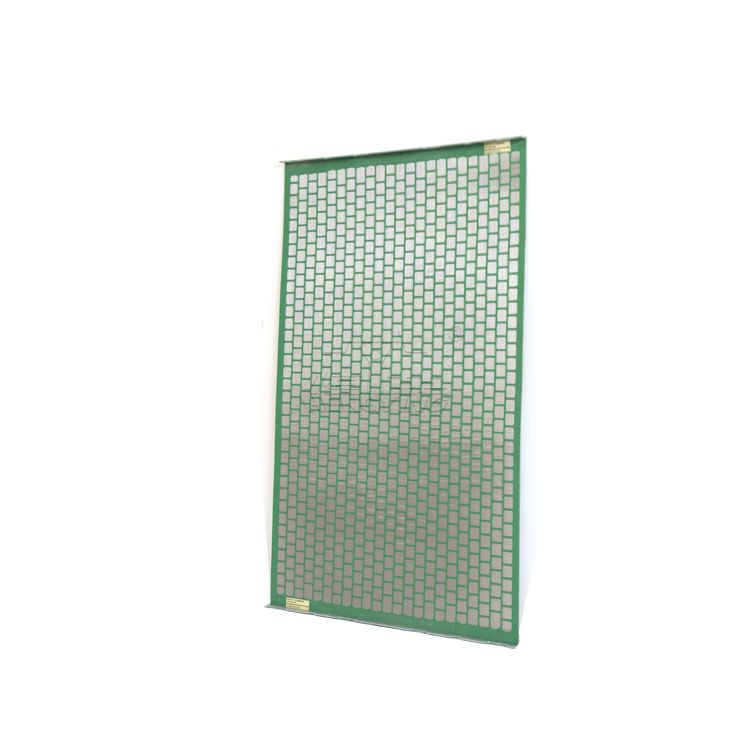

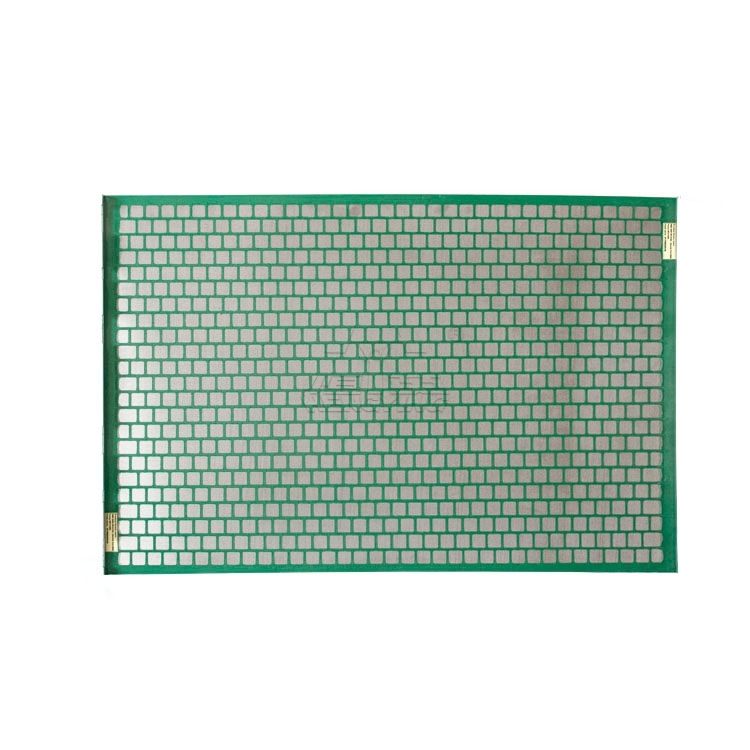

Derrick FLC 2000 flat Shale Shaker Screen API 13C Standard: Flat Panel and Wave
| API RP 13C(ISO 13501) | |
| D100 Separation(Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
| Screen Model | Range of Mesh | Dimension (Width x Length) | Brand & Model of Shaker |
| HSB-1(WAVE ®) | 20-325 | 697×1053mm | DERRICK-FLC2000(PMD) Series |
| HSB-2((WAVE ®) | 20-325 | 695×1050mm | DERRICK-FLC500(PMD) Series |
| HSB-3(WAVE ®) | 20-325 | 710×626mm | DERRICK-FLC600 (PMD) Series |
| HSB-4(WAVE ®) | 20-325 | 567×1070mm | DERRICK HYPERPOOL |
| HSP-1 | 20-325 | 697×1053mm | DERRICK-FLC2000(PWP) Series |
| HSP-2 | 20-325 | 695×1050mm | DERRICK-FLC500(PWP) Series |
| HSP-3 | 20-325 | 697× 846 mm | DERRICK-FLC313M |
| HSZ-1/1 | 20-325 | 585×1165mm | SWACO MONGOOSE PT＆PRO |
| HSZ-3 | 20-325 | 610×660mm | SWACO MD-2＆MD-3 |
| HSP-4 | 20-325 | 903×1155mm | SWACO BEM-3 |
| HSF-1 | 20-250 | 700×1050mm | SWACO DERRICK-FLC2000 |
| HSF-2 | 20-250 | 1212×1141mm | SWACO ALS-2 |
| HSZ-2/1 | 20-325 | 635×1250mm | BRANDT KING COBRA＆COBRA |
| HSK-2 | 20-325 | 635×1253mm | BRANDT KING COBRA |
| HSK-3 | 20-325 | 940*686mm | BRANDT VSM300 Pramary |
| HSK-4 | 20-325 | 889*686mm | BRANDT VSM300 scalping |
| HSK-5 | 20-325 | 712×1180mm | BRANDT D380 |
| HSK-4 | 20-325 | 720×1220mm | KTL48 SERIES |
| HSK-6 | 20-325 | 737*1067mm | FSI 50＆500＆5000 |
| HSP-6 | 20-325 | 915×1150mm | LCM-2D |
| HSP-7 | 20-325 | 700×1165mm | S250 |
