Wave Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.
PRODUCT FEATURES

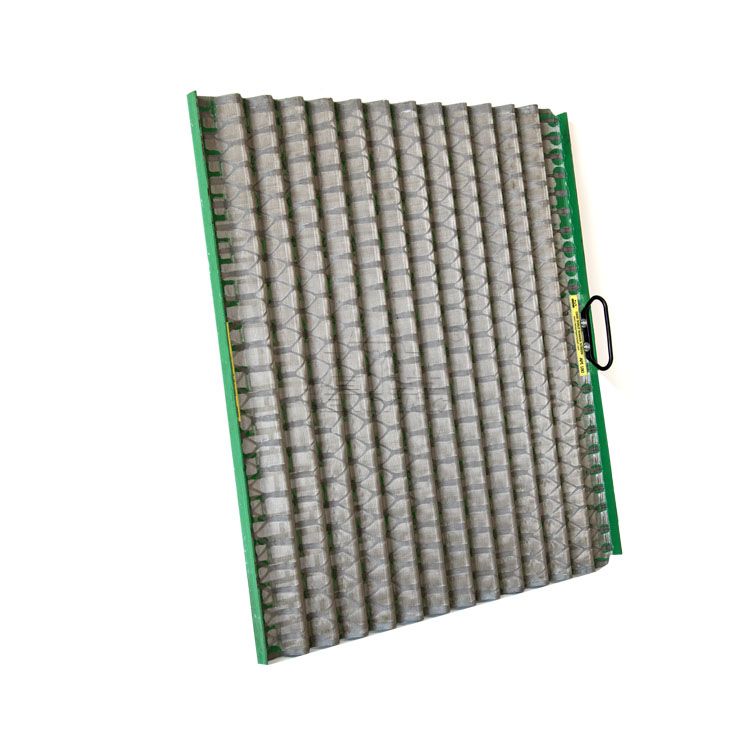

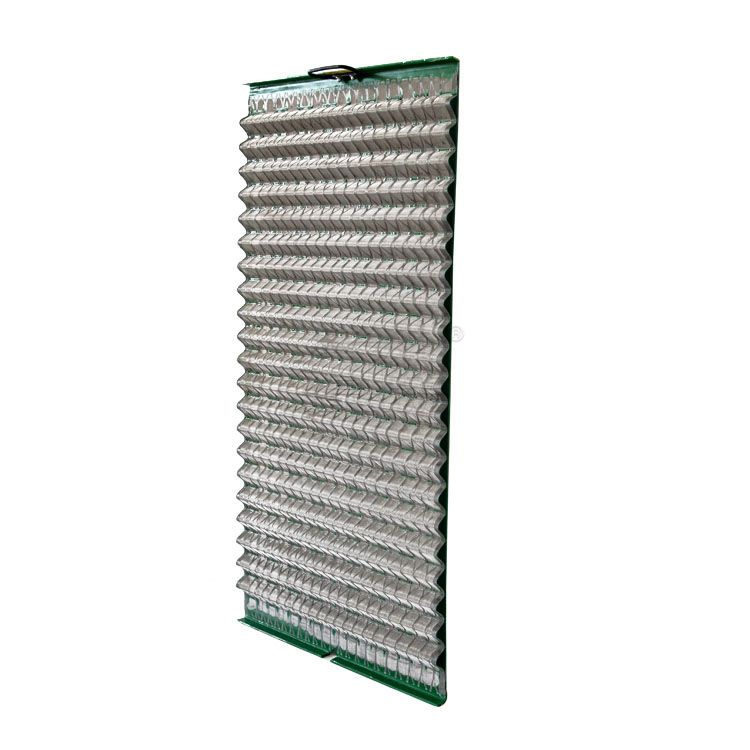

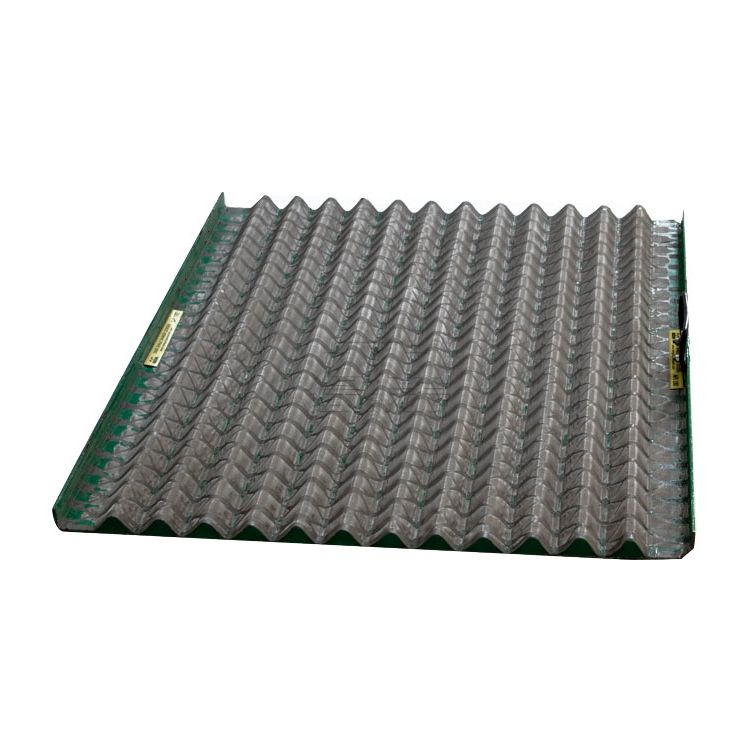

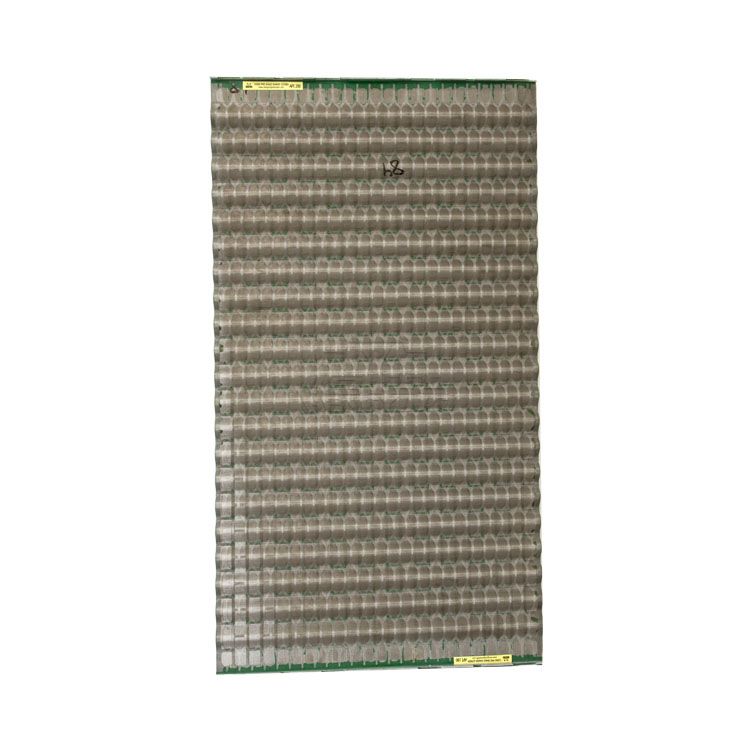

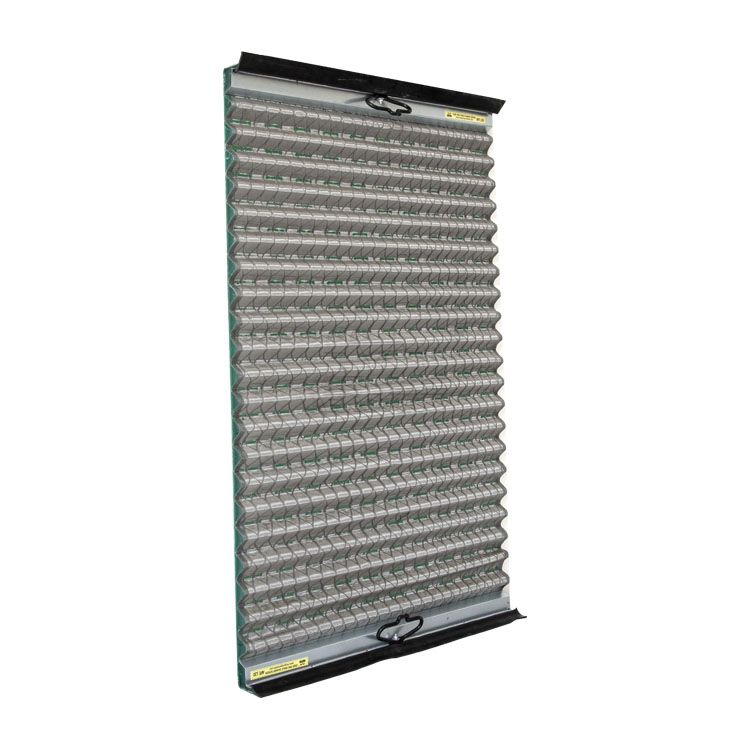

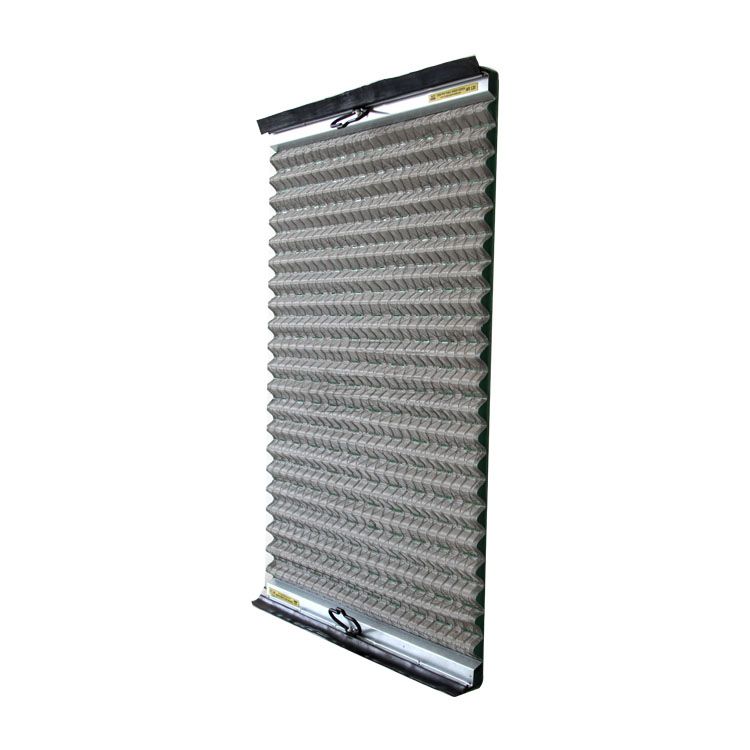

Wave® Screen for Derrick 500
The feature of Wave Screen:
1. Wave Screen has large effective area, and drilling fluid is handle in high-efficiency by using it.
2. Every wire close in the sieving screen has different meshes,and accurate collocation can make the screen has better effect.

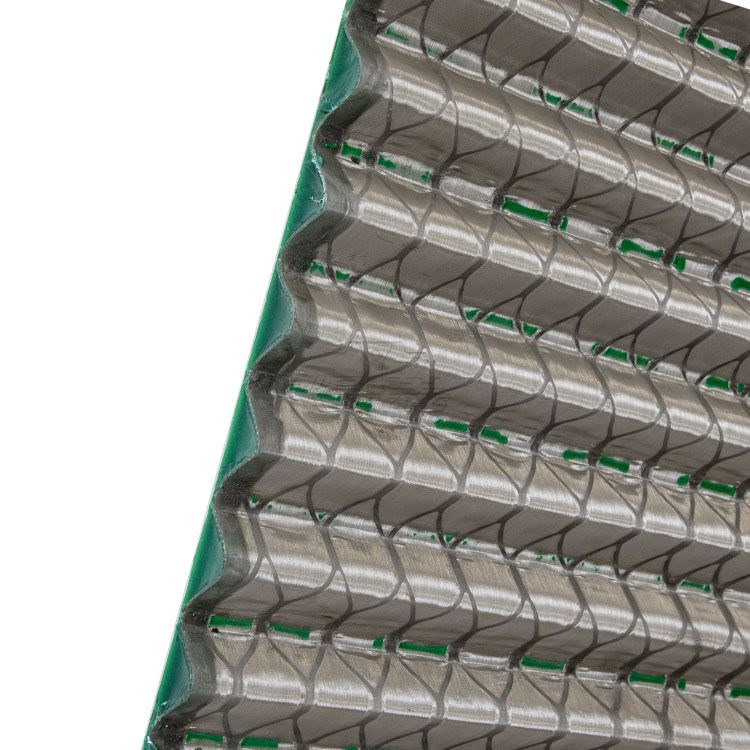

3. Stainless steel wire cloth is wave,and closely holds to metal support plank together.The effective area is up to 125% to 150% of the flat screen with the same specification,so as to improve of handling capacity.
Our factory can produce various specifications wave screen according to customer demand.
We produce premium and economy replacement screens for industry’s most popular shaker brands as follow：
| Screen Model | Range of Mesh | Dimension(widthx Length) | Brand & Model of Shaker |
| HSB-1(WAVE) | 20-325 | 697×1053mm | D2000 |
| HSB-2(WAVE) | 20-325 | 695×1050mm | D500Series |
| HSB-3(WAVE) | 20-325 | 710×626mm | D600Series |
| HSB-4(WAVE) | 20-325 | 567×1070mm | D-HYP |
| API RP 13C(ISO 13501) | |
| D100 Separation(Microns) | API Screen Number |
| >780.0 to 925.0 | API 20 |
| >655.0 to 780.0 | API 25 |
| >550.0 to 655.0 | API 30 |
| >462.5 to 550.0 | API 35 |
| >390.0 to 462.5 | API 40 |
| >327.5 to 390.0 | API 45 |
| >275.0 to 327.5 | API 50 |
| >231.0 to 275.0 | API 60 |
| >196.0 to 231.0 | API 70 |
| >165.0 to 196.0 | API 80 |
| >137.5 to 165.0 | API 100 |
| >116.5 to 137.5 | API 120 |
| > 98.0 to 116.5 | API 140 |
| > 82.5 to 98.0 | API 170 |
| > 69.0 to 82.5 | API 200 |
| > 58.0 to 69.0 | API 230 |
| > 49.0 to 58.0 | API 270 |
| > 41.5 to 49.0 | API 325 |
