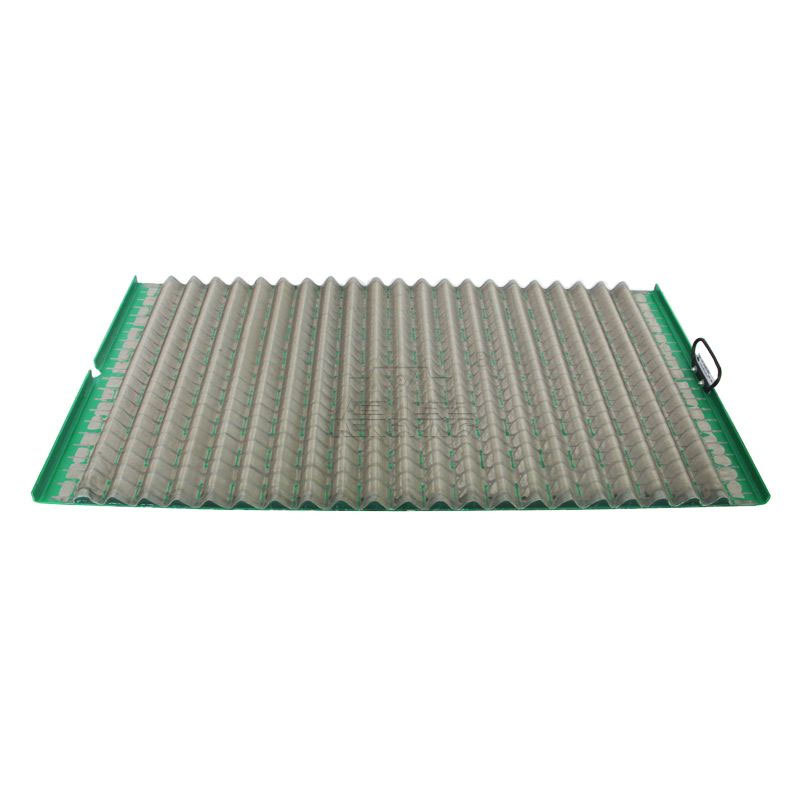

Hook Strip Soft Screen
Hook Strip Soft Screen is the most widely used screen,the features of screen of this type:
- By 2 to 3 layers of stainless steel wire cloths bonding as a whole without metal foils.
- Install in the shaker by the way of crisperding without metal branch cuttings fiber towel glue and with large effective area.
- The wire diameter of the bottom layer of the screen mesh is relatively coarse,which plays the roles of screening and supporting with the upper layer and extends the life of the screen.
- The soft screen,with low price,effective filtration area is bigger than flat screen,but its lift is comparatively short with that of flat screen.It needs to choose different screen, depending on the drilling conditions.
Our company can produce a variety of specifications hook strip soft screen according to the different needs of customers.
Screen ModelRange of MeshDimension Brand & Model of Shaker(width x Length)HSF-120-250700×1050mmD2000HSF-220-2501212×1141mmALS-2HSF-310-80915×925mmJSS(USA)HSF-48-1201514×1225mm4×5HSF-520-2501000×1150mmNS-115/2HSF-620-250600×1040mmNCS-300×2API Sieve Parameters
API RP 13C(ISO 13501)D100 Screening Particles (micrometers)API Sieve No.>780.0 to 925.0API 20>655.0 to 780.0API 25>550.0 to 655.0API 30>462.5 to 550.0API 35>390.0 to 462.5API 40>327.5 to 390.0API 45>275.0 to 327.5API 50>231.0 to 275.0API 60>196.0 to 231.0API 70>165.0 to 196.0API 80>137.5 to 165.0API 100>116.5 to 137.5API 120> 98.0 to 116.5API 140> 82.5 to 98.0API 170> 69.0 to 82.5API 200> 58.0 to 69.0API 230> 49.0 to 58.0API 270> 41.5 to 49.0API 325
