Well Screen

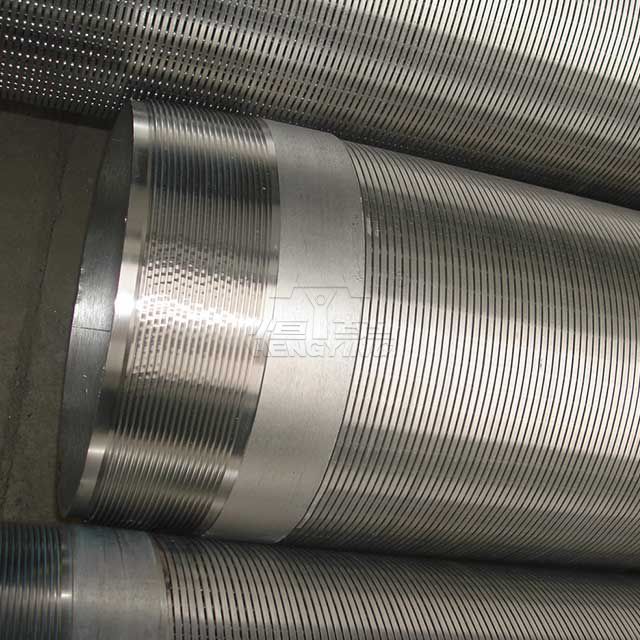

The welded stainless steel water well screen is made up of rods and warp.

PRODUCT FEATURES

Well Screen(Wedge Wire Screen)

Materials: carbon steel and stainless steel (302,304,304L,316,316L etc).
characteristics: The welded stainless steel water well screen is made up of rods and warp. The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire). Water well screens have a structure and high open area, as well as accurate slot dimension. At the same time, water well screen have heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability and so on characteristics. It can be used in many kinds of medium filtering.
Uses: The strainer is a kind of filtered water tubing with the perforation. it can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, the environmental protection, the sea water transforms into the industrial water and life use water desalination treatment, running water treatment, water softening treatment, the petroleum industry: The petroleum product terminal filters and the chemical acid, the alkali liquid filters, the ethyl alcohol and so on the organic solution recycling filters.

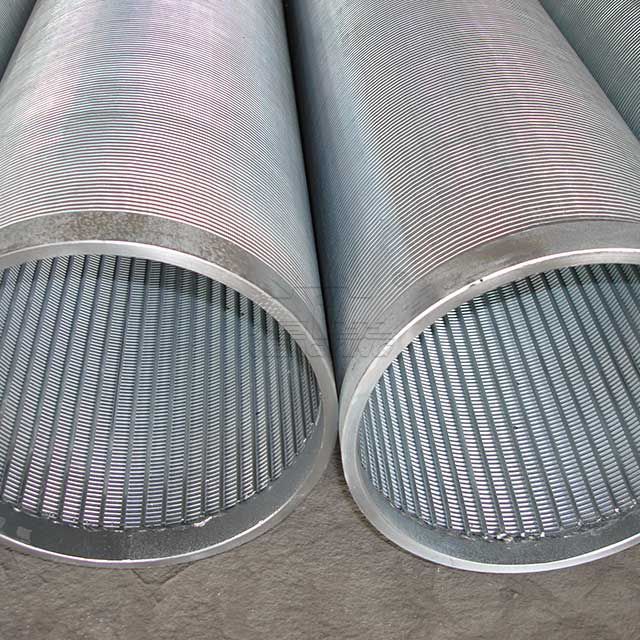

Continuous slots significantly increase discharge area, thus providing greater access to water-bearing zone.

We can produce this pipe with diameter 80mm-550mm, slot size 0.1mm-10mm, length 50mm-5850mm.

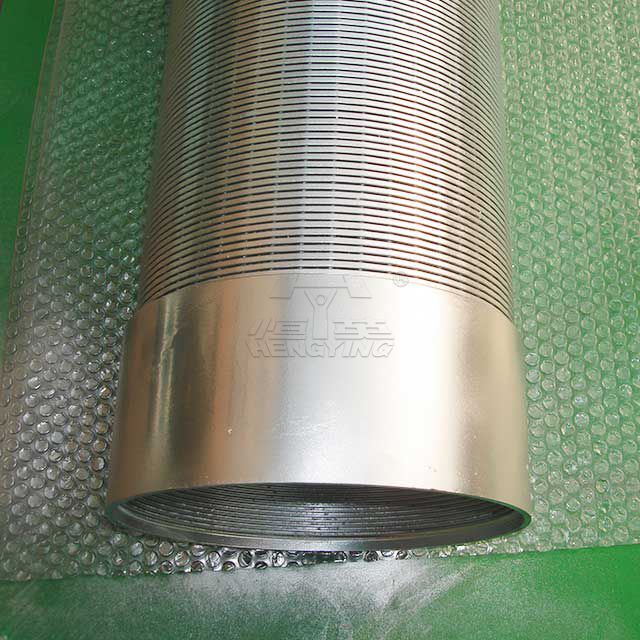

 Screen Size Inside Diameter Outside Diameter OD of Female Threaded End
inmminmminmminmm
25125125/86723/470
37637635/89233/495
4102410245/811743/4121
5127512755/814353/4146
6152615265/81687178
8203820385/821991/4235
1025410254103/4273113/8289
1230512305123/4324133/8340
1435613 1/833314356--------
164061538116406--------
2050818 3/447620508--------



ProfileWire
Well ScreenWell ScreenWell ScreenWell ScreenWell ScreenWell ScreenWell ScreenWell Screen
Width(mm)1.51.52.32.31.83.03.73.3
Height(mm)2.22.52.73.64.34.75.66.3



SupporTrod
Well ScreenWell ScreenWell ScreenWell ScreenWell Screen
Round Wire
WIidth(mm)2.32.33.03.73.3Ø2.5mm-Ø5mm
Height(mm)2.73.64.75.66.3



TAGS: Well Screen
