Stainless Steel Well Screen

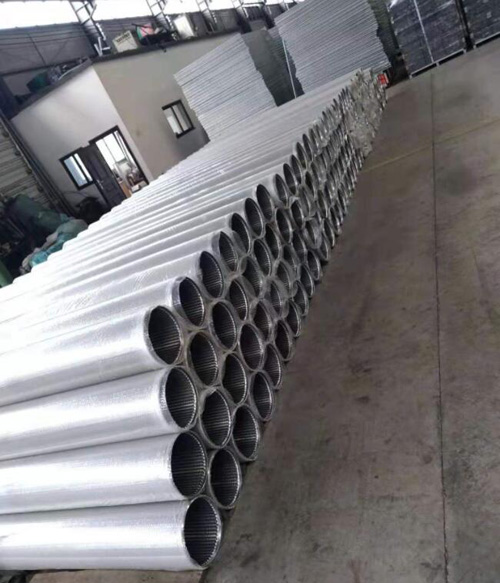

Wire Wrap Water Screen Pipe

Stainless steel wire wrap screen pipe is the main stainless steel well screen pipe type used in the water well industry, it is welded together by v-shaped wire and support rod through advanced circular resistance welding. This kind of screen tube has the characteristics of firm structure, large opening area, corrosion resistance, nonblocking, and no maintenance.

Slotted Liner

The slotted liner is mainly used to the water and oil reservation layer without much sand. It’s function is prevent rock bits dripping into the well bore. The working principle is allowing the certain size and coming through the surface with crude oil but keeping the bigger size sand stopped outside to form sand bridge, and thereby achievement the anti-sand purpose. This type of produce is commonly used to sand rock and catbonate reservoir and especially useable for horizontal wells.

Perforated pipe

Carbon steel perforated pipes manufactured with carbon steel or stainless steel.

We can drill standard or customized hole size in any number and any pattern. Every joint perforated by us is deburred internal and external. Every hole is visually inspected and cleaned of burr material.

Bridge Slotted Screen pipe

Bridge Slotted Screen pipe is a new product which is composed of central tube, precise punched slotted screen jacket and stainless steel ring. It has characteristics such as exquisite controlled hole, high percentage of open area, strong integral strength, resistant to deformation to corrosion and high reliability etc.

Product Specification

1. Slot size(mm): 0.01~3mm

2. Open area: up to 60%

3. Material: low carbon, low carbon galvanized steel (LCG) steel treated with  anticorrosion coating, stainless steel (304, 316L etc)

4. Unit Length up to 6 meters

5. Diameter: ranging from 25 to 800mm

6. End connection: plain beveled ends for butt welding or threaded coupling  or flange.

Support Wire						Round Wire ●
Width(mm)	2.3	2.3	3.0	3.7	3.3	Ø2.5mm－Ø5mm
Height (mm)	2.7	3.6	4.7	5.6	6.3
